Plugin Class

Plugins are defined by a single plugin class that inherits from the Plugin base class provided by the Ocelescope Python package.

A plugin class contains:

  • Metadata (e.g., label, description, version) that is displayed in the frontend’s plugin interface.
  • Runnable functions (plugin methods) that can be invoked from within Ocelescope.

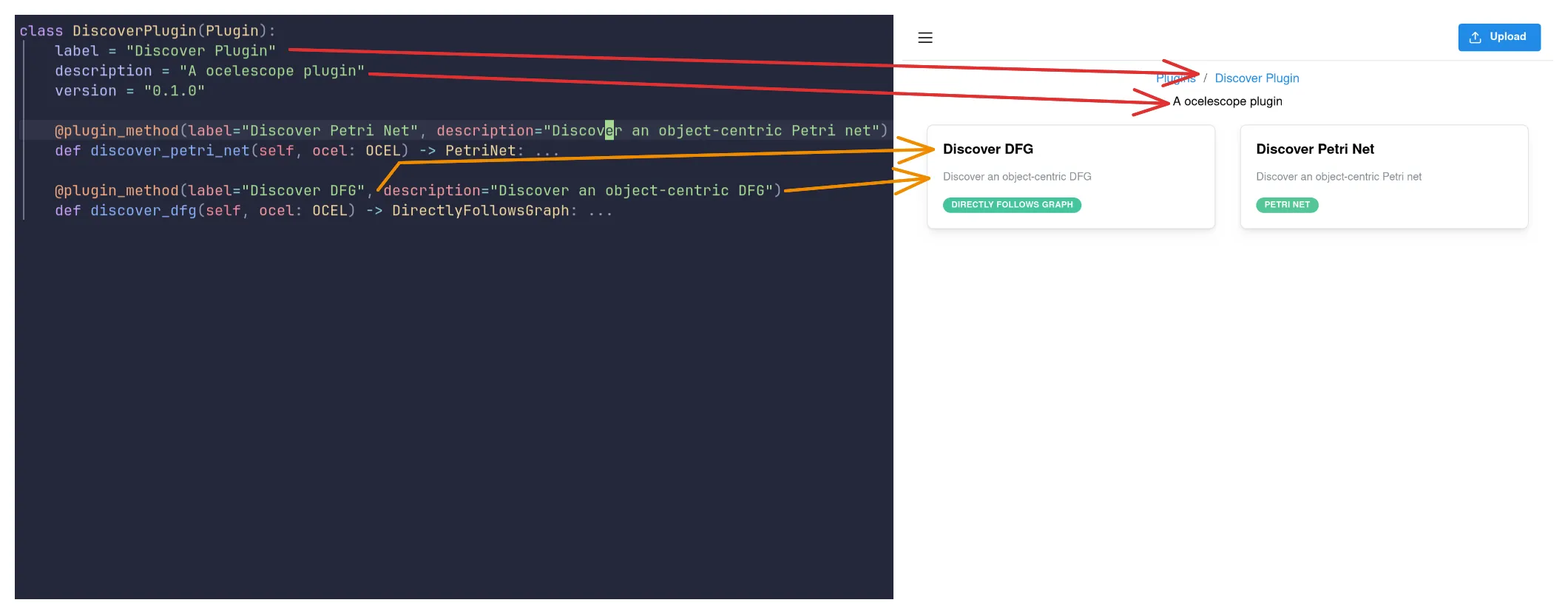

A plugin class next to its card in the Ocelescope Plugin Overview. The class attributes label, description and version appear as the card's title, description and version number, and each @plugin_method, such as Discover PetriNet, appears as an entry in the card's Methods list.

Each plugin package must export exactly one plugin class via its __init__.py.

Plugin Methods

Section titled “Plugin Methods”

Plugin methods are the object-centric process mining (OCPM) operations a plugin offers. Each one is a method on the plugin class, decorated with @plugin_method from the ocelescope package.

A plugin method takes OCELs, Resources (process mining artifacts such as Petri nets) and an optional configuration input, and returns OCELs and/or Resources. Ocelescope generates an input form from the method’s signature and shows each returned value with its visualization.

A plugin method as a pipeline. Its inputs (OCELs, Resources and a configuration input) generate the method's input form, and its outputs (OCELs and Resources) are shown as visualizations in Ocelescope.

Input Definition

Section titled “Input Definition”

The parameters of a plugin method define its inputs. A method can take:

  • any number of OCELs
  • any number of Resources
  • at most one configuration input

Ocelescope builds the method’s input form from these parameters, together with the label and description passed to @plugin_method.

A plugin method next to the input form Ocelescope generates for it. The @plugin_method label and description become the form's title and description, the annotated OCEL and PetriNet parameters become the "Event Log" and "Petri Net" selectors, and the fields of the ConformanceInput configuration class become the "Conformance metrics" field.

OCEL Inputs

Section titled “OCEL Inputs”

To accept an OCEL, type a parameter as OCEL from the ocelescope package. A method can take any number of them.

By default the form uses the parameter name as the field label. To set a label and description, wrap the type in Annotated with an OCELAnnotation. To make an OCEL optional, type it as OCEL | None and give it a default of None.

Three OCEL parameters next to the form fields they produce. A plain OCEL parameter is shown under its parameter name, an annotated one with its label and description, and an optional one without the required marker and with a clear button.

Resource Inputs

Section titled “Resource Inputs”

Resources represent process mining artifacts such as Petri nets or directly-follows graphs. A method can take any number of Resources, of the same or different types.

You can use the Resources the ocelescope package already provides or define your own. They work like OCEL inputs: annotate them with ResourceAnnotation to set a label and description, and use | None = None to make them optional.

Configuration Inputs

Section titled “Configuration Inputs”

In addition to Resource and OCEL parameters, a plugin method can define one extra configuration parameter of type PluginInput.

Use a PluginInput when your method needs user-provided settings, for example:

  • a noise threshold between 0 and 1
  • selecting a leading object type for computing process executions
  • toggles, lists, or other algorithm parameters

Configuration settings are grouped into a single class that inherits from PluginInput (from the Ocelescope Python package).
Each setting is defined as a class field and can be a str, bool, number, list, or even another Pydantic model.

To make inputs easier to use in the UI, you can add:

  • metadata (title, description, etc.), and
  • constraints (min/max values, patterns, list length, …)

You do this with Pydantic’s Field helper.

Important: Each plugin method can have exactly one PluginInput parameter, and it must be named input.

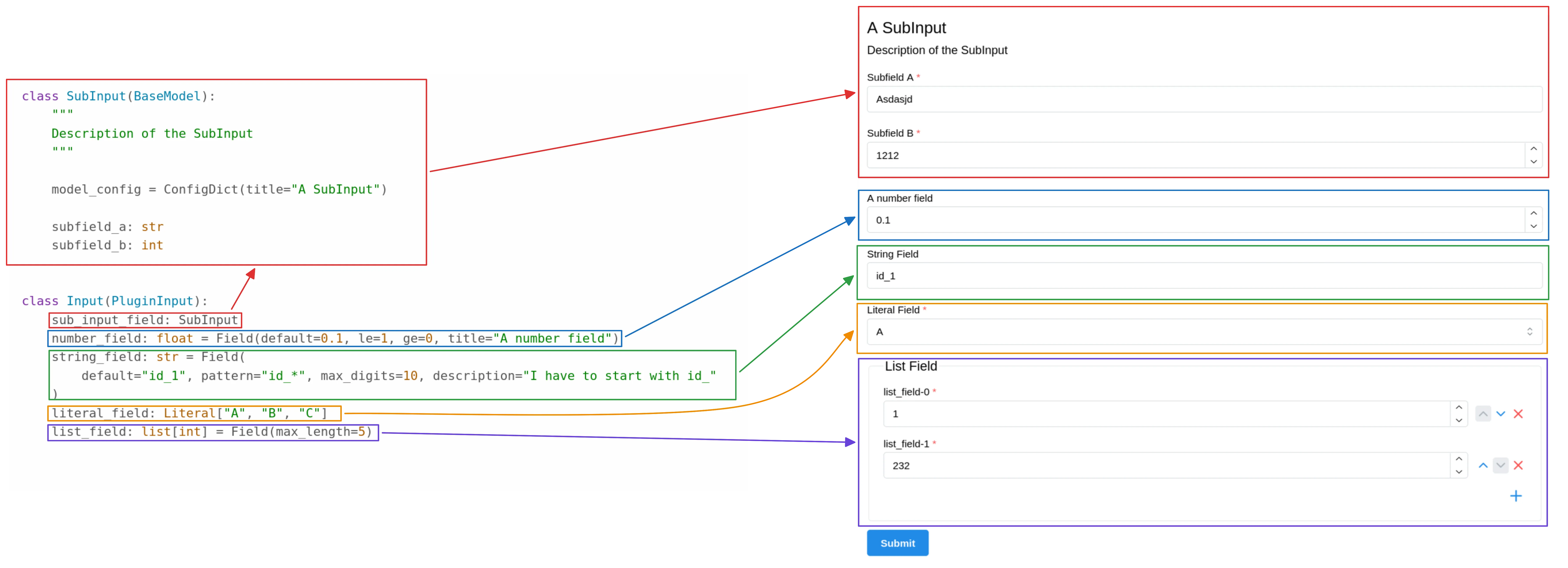

An example plugin input and its resulting form

An Example PluginInput
from typing import Annotated, Literal


from ocelescope import OCEL, OCELAnnotation, Plugin, PluginInput, plugin_method
from pydantic import BaseModel, ConfigDict, Field


class SubInput(BaseModel):
    """Description of the SubInput."""


    model_config = ConfigDict(title="A SubInput")


    subfield_a: str
    subfield_b: int


class Input(PluginInput):
    sub_input_field: SubInput


    number_field: float = Field(
        default=0.1,
        ge=0,
        le=1,
        title="A number field",
    )


    string_field: str = Field(
        default="id_1",
        pattern=r"^id_",
        max_length=10,
        description="A string that has to start with id_",
    )


    literal_field: Literal["A", "B", "C"]


    list_field: list[int] = Field(max_length=5)


class MinimalPlugin(Plugin):
    label = "Minimal Plugin"
    description = "An Ocelescope plugin"
    version = "0.1.0"


    @plugin_method(label="Example Method", description="An example plugin method")
    def example(
        self,
        ocel: Annotated[OCEL, OCELAnnotation(label="Event Log")],
        input: Input,  # must be named `input`
    ) -> OCEL:
        ...

OCEL Fields

Section titled “OCEL Fields”

OCEL fields let you populate configuration inputs with values taken directly from the selected OCEL, for example:

  • available object types
  • available event types / activities
  • event IDs and object IDs
  • available event/object attribute names

You define these fields with OCEL_FIELD. It works similarly to Pydantic’s Field, but instead of only validating user input, it connects the input to the OCEL so the UI can offer dropdowns/autocomplete based on the log.

Important: The ocel_id must match the name of the OCEL parameter in your plugin method (usually ocel). Otherwise, the field cannot be linked to the selected log.

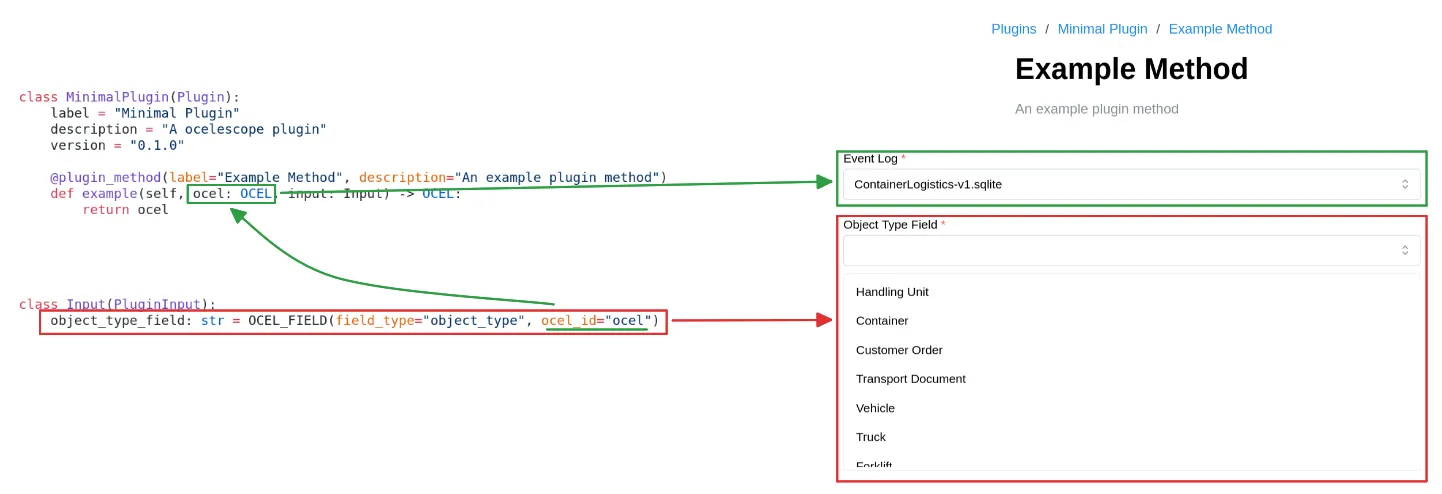

An example for using OCEL Field

Using OCEL_FIELD
from typing import Annotated


from ocelescope import OCEL, OCEL_FIELD, OCELAnnotation, Plugin, PluginInput, plugin_method


class Input(PluginInput):
    object_type_field: str = OCEL_FIELD(field_type="object_type", ocel_id="ocel")
    object_type_list_field: list[str] = OCEL_FIELD(field_type="object_type", ocel_id="ocel")


    event_type_field: str = OCEL_FIELD(field_type="event_type", ocel_id="ocel")


    event_id_field: str = OCEL_FIELD(field_type="event_id", ocel_id="ocel")
    object_id_field: str = OCEL_FIELD(field_type="object_id", ocel_id="ocel")


    object_attribute_field: str = OCEL_FIELD(field_type="object_attribute", ocel_id="ocel")
    event_attribute_field: str = OCEL_FIELD(field_type="event_attribute", ocel_id="ocel")


class MinimalPlugin(Plugin):
    label = "Minimal Plugin"
    description = "An Ocelescope plugin"
    version = "0.1.0"


    @plugin_method(label="Example Method", description="An example plugin method")
    def example(
        self,
        ocel: Annotated[OCEL, OCELAnnotation(label="Event Log")],
        input: Input,  # must be named `input`
    ) -> OCEL:
        ...

Computed Inputs

Section titled “Computed Inputs”

Computed inputs are fields whose available values are generated dynamically from the current state of the input form.

They are useful when the options depend on what the user has already entered, for example, generating a list of values based on a prefix, or filtering choices based on earlier selections.

Computed inputs are defined with COMPUTED_SELECTION. You provide the name of a provider function (as a string). Ocelescope calls that function whenever the user changes the form, and uses the returned list as the selectable values.

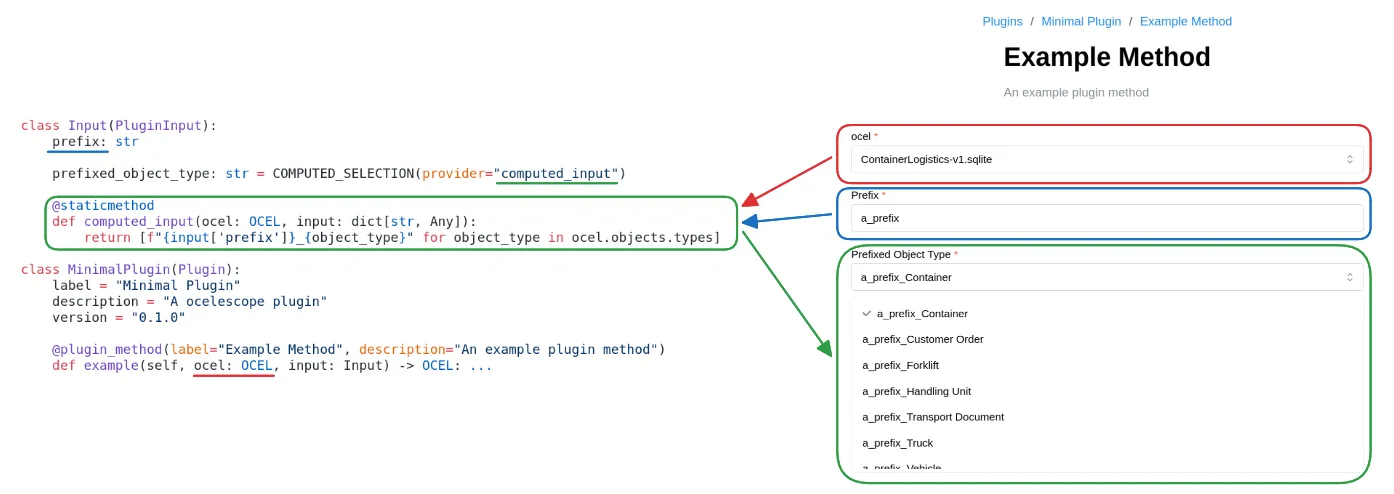

An example for using a Computed Field

Using a COMPUTED_SELECTION
from typing import Any


from ocelescope import COMPUTED_SELECTION, OCEL, Plugin, PluginInput, plugin_method


class Input(PluginInput):
    prefix: str


    prefixed_object_type: str = COMPUTED_SELECTION(provider="computed_input")


    @staticmethod
    def computed_input(ocel: OCEL, input: dict[str, Any]):
        return [f"{input['prefix']}_{object_type}" for object_type in ocel.objects.types]


class MinimalPlugin(Plugin):
    label = "Minimal Plugin"
    description = "An Ocelescope plugin"
    version = "0.1.0"


    @plugin_method(label="Example Method", description="An example plugin method")
    def example(self, ocel: OCEL, input: Input) -> OCEL:
        ...

Output Definition

Section titled “Output Definition”

The return type annotation of a plugin method defines its outputs. A method can return:

  • an OCEL, for example a filtered or enriched log
  • a Resource, such as a PetriNet or one of your own Resources
  • a list of OCELs or of Resources, for example list[Variant]
  • several outputs at once, written as a tuple[...] of the types above

Ocelescope adds each returned OCEL to the available logs, and shows each returned Resource with its visualization.

Important: The return type annotation is required, and it may only contain OCEL, Resource subclasses, list[...], T | None and tuple[...]. Any other type raises a TypeError when the plugin is loaded.
